Alu. Self Supported Ladder

Discover Gujarat's leading manufacturers of Aluminium Self Supported Ladders. High-quality, durable ladders for safety and convenience at work. Contact us for Shop Now from Daskroi, Rakhial, Ahmedabad-380023, Gujarat, India.

Model No.SE-161

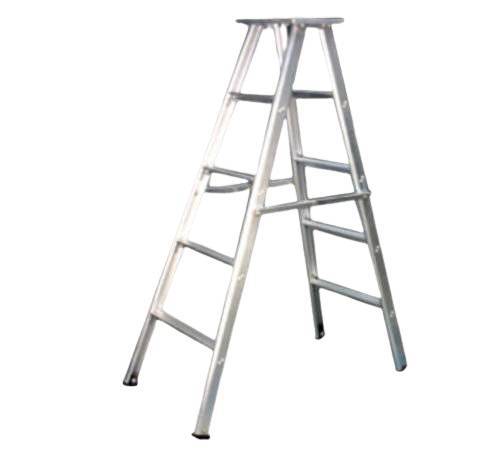

From Shreeji high tensile aluminum alloy, this ladder is compact, and light in weight yet sturdy, foldable, and suitable where no wall support is available. This ladder is equipped with anti-slip 2.5-inch wide steps, rubber pads at the bottom, and a Platform on top for convenient working.

Yes I am Interested

Specification.:

Height ( in ft)	A - Width at bottom ( in inches)	B - Length at bottom when open (in inches)	Weight ( in kgs)
5	21	45	10
6	24	50	12
8	27	55	16
10	30	60	19
12	33	71	23
14	35	75	26
15	35	78	28
16	39	80	30
18	42	89	34
20	45	92	37

MATERIAL SPECIFICATIONS.:

Side Section Dimensions : Aluminium 'C' section(HE-30 Grade) Size :
Step Details : 2.5"inch Aluminium Flat Step
Size of Platform : 10"inches x 16"inches
Distance between two steps : 12" inches c/c
Others : Rubber shoes,M.S hinges etc.
Binder Details : Aluminium 25.4mm Round corrugated tube at
Confirms to : HE-30grade T-6 Temper, IS : 733 - 1982
