Alu. Self Supported Extension Ladder

Discover top-notch manufacturers in Gujarat providing high-quality Aluminium Self Supported Extension Ladders. Explore the best in durability and design. Contact us for Shop Now from Daskroi, Rakhial, Ahmedabad-380023, Gujarat, India.

Model No.SE-164

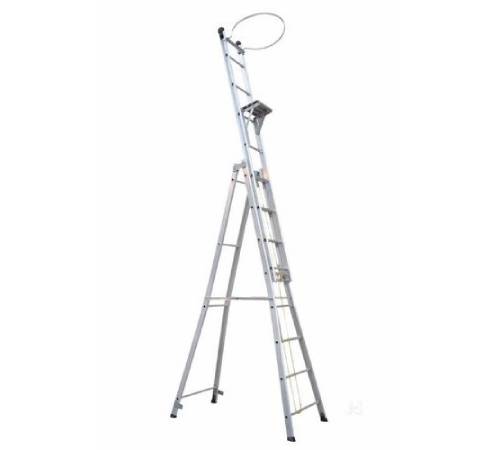

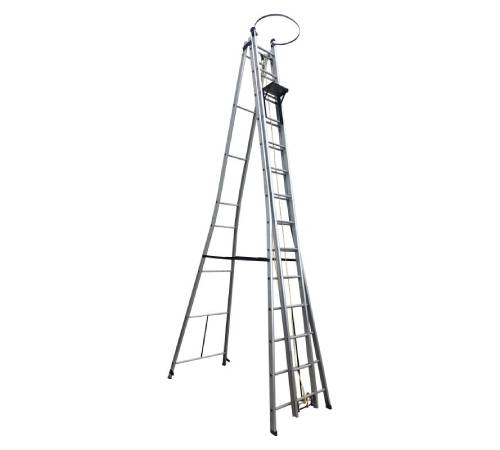

Product Description : Manufactured from high tensile aluminium alloy ,this ladder is compact, extendable, light in weight yet sturdy, foldable and suitable where no wall support is available .Equipped with dye cast catcher with required nylon rope and pulleys for extending the ladder Rubber pads at the bottom. To ensure the safety of the user Safety Ring and safety belt are provided.

Yes I am Interested

Available Size.:

Height ( in ft)	A - Width at bottom ( in inches)	B - Length at bottom when open (in inches)	Weight ( in kgs)
5	21	45	10
6	24	50	12
8	27	55	16
10	30	60	19
12	33	71	23
14	35	75	26
15	35	78	28
16	39	80	30
18	42	89	34
20	45	92	37

MATERIAL SPECIFICATIONS.:

Section Size width :Alumnium 'C' section(HE-30 Grade) Size : 66.6mm x 31.25mm
Step Details : Alumnium 25.5mm Round corrugated tube
Locking Facility : Aluminium Dye Casted catcher (Lockable at every 12inches)
Operating Facility : Nylon rope & pulley for extending & closing the ladder
Size of Platform : 8" x 11"(3ft. Below from top)
Distance between two steps : 12" inches c/c
Others : Safety Ring at top, Rubber shoes, M.S hinges etc.
Confirms to : HE-30grade T-6 Temper, IS : 733 - 1982
