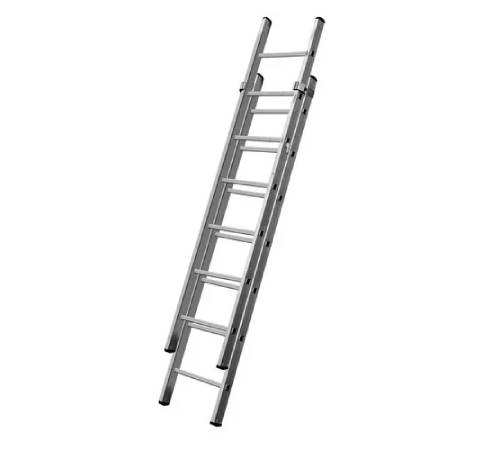

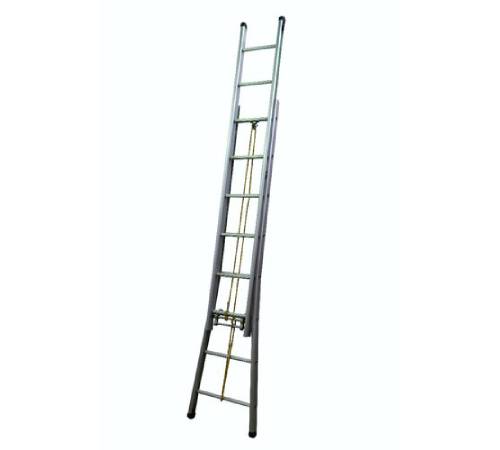

Alu. Wall Supported Extension Ladder

Top-notch Aluminium Wall Supported Extension Ladders in India. Reliable, secure, & durable ladders by leading manufacturers. Reach heights safely.Contact us for Shop Now from Daskroi, Rakhial, Ahmedabad-380023, Gujarat, India.

Model No.SE-163

Product Description: Manufactured from high tensile aluminium alloy, this ladder is compact, extendable, and light in weight yet sturdy.Equipped with dye cast catcher with required nylon rope and pulleys for extending the ladder and rubber pads at the bottom.

Yes I am Interested

Available Sizes.:

2 - Section

Closed ( in ft)	Extended (in ft)	Weight ( in kgs)
8	14	13
10	17	16
12	21	18
14	25	21
16	29	23
18	32	26
20	35	28
24	43	37

3 - Section

Closed ( in ft)	Extended (in ft)	Weight ( in kgs)
10	24	23
12	30	26
14	36	30
16	40	33
18	45	37
20	50	41
24	60	45

MATERIAL SPECIFICATIONS.:

Section Size width : Alumnium 'C' section(HE-30 Grade) Size : 66.6mm x 31.25mm
Step Details : Alumnium 25.5mm Round corrugated tube
Locking Facility : Aluminium Dye Casted catcher (Lockable at every 12inches)
Operating Facility : Nylon rope & pulley for extending & closing the ladder
Distance between two steps : 12" inches c/c
Others : Rubber Shoes
Rubber Shoes : HE-30grade T-6 Temper, IS : 733 - 1982
