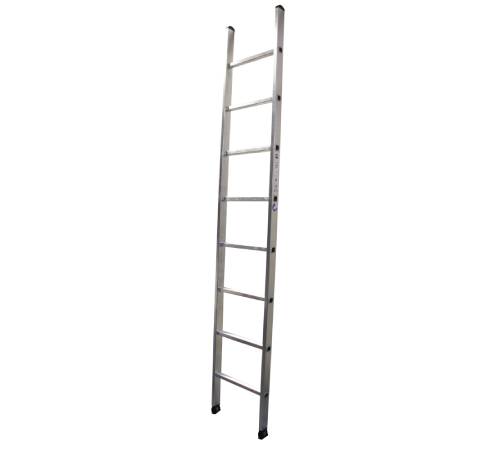

Alu. Wall Supported (Single Ladder)

Best-in-class Aluminium Wall Supported products in Ahmedabad! Premium quality, reliable & affordable. Your one-stop solution for all Alu. Wall needs. Contact us for Shop Now from Daskroi, Rakhial, Ahmedabad-380023, Gujarat, India.

Model No.SE-162

Product Description: Manufactured from high tensile aluminum alloy ,this ladder is light in weight yet sturdy.Equipped with Anti Slip 2.5"inch wide steps and rubber pads at bottom for convenient working.

Yes I am Interested

Specification.:

Height ( in ft)	A - Width at bottom ( in inches)	B - Length at bottom when open (in inches)	Weight ( in kgs)
5	21	45	10
6	24	50	12
8	27	55	16
10	30	60	19
12	33	71	23
14	35	75	26
15	35	78	28
16	39	80	30
18	42	89	34
20	45	92	37

MATERIAL SPECIFICATIONS.:

Section Size width : Alumnium 'C' section(HE-30 Grade) Size : 66.6mm x 31.25mm
Step Details : 2.5"inch Alumnium Flat Step
Distance between two steps : 12" inches c/c
Others : Rubber Shoes, , "L" / "J" hooks p.c
Confirms to : HE-30grade T-6 Temper, IS : 733 - 1982
